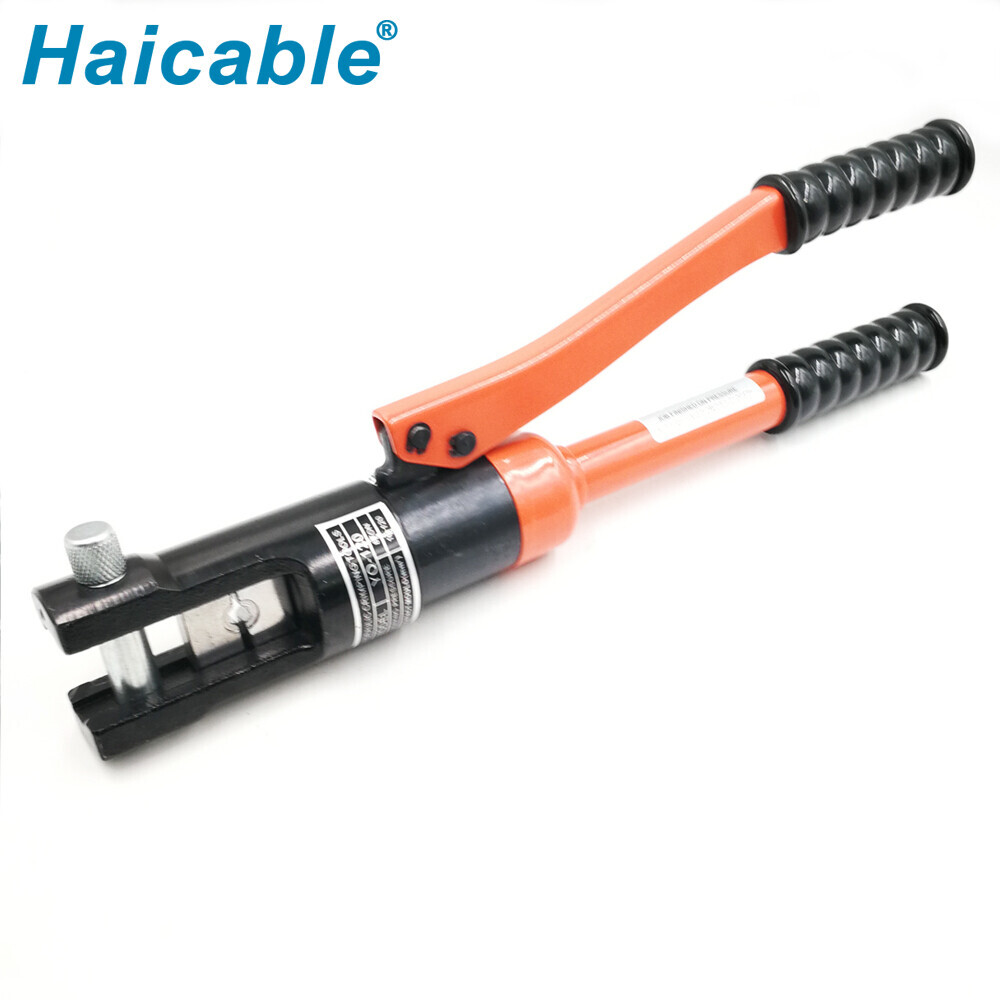

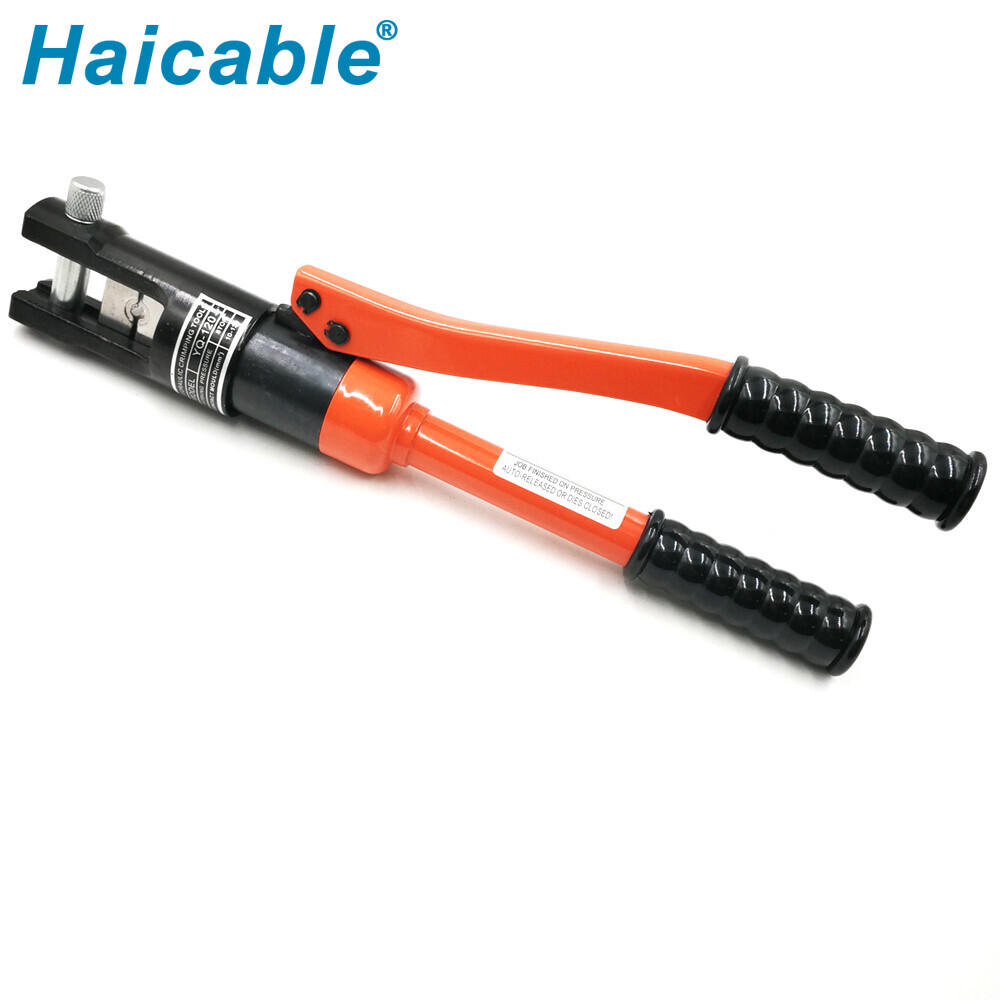

10-120mm² Hydraulic Crimping Tools YQ-120
● Forging head proceeding
● Energy and wind application
● Aluminum-alloy or steel body
● Special purpose dies available
Contact Us

Features

• Hexagon crimping type for cable lug，wire clamp, pipe with hexagon dies or other dies for crimper
• Fitted with safety valve. Automatically relief working pressure when complete crimping

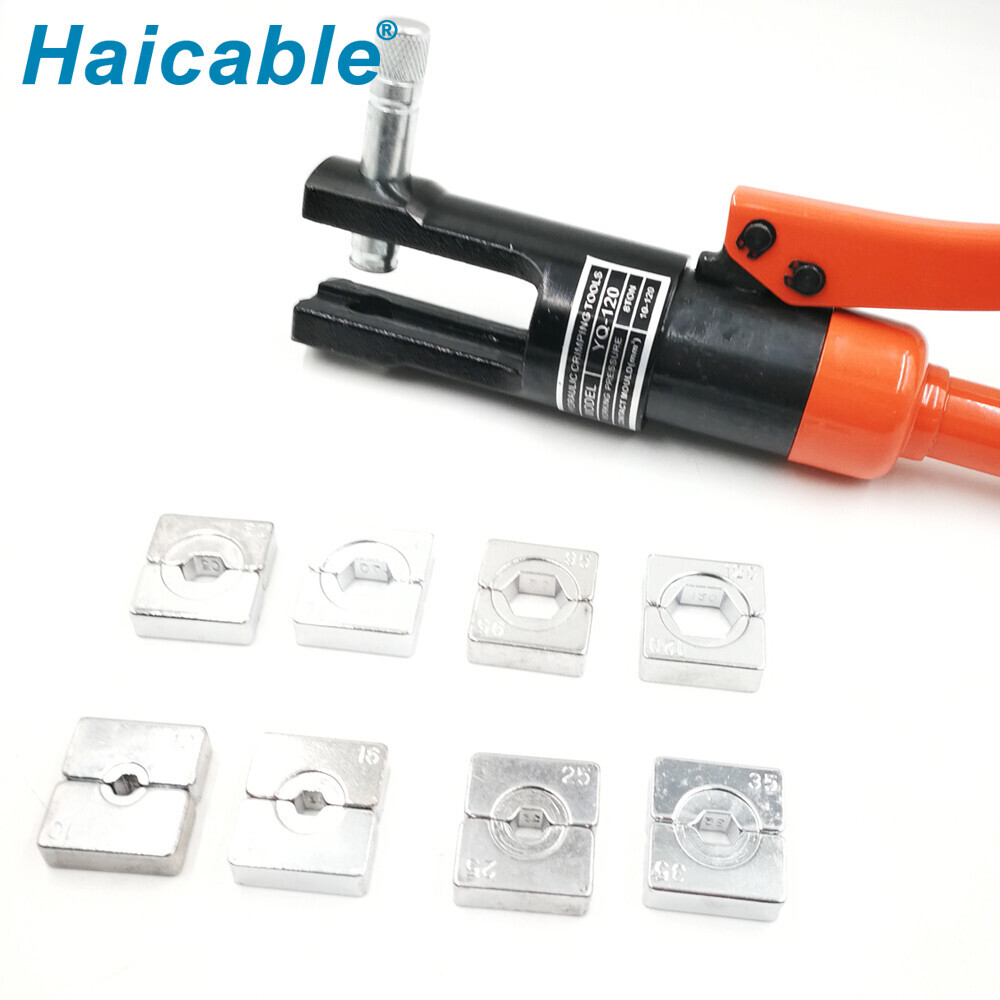

• Standard eleven set of dies: 10 16 25 35 50 70 95 120mm²
• Dies could be OEM

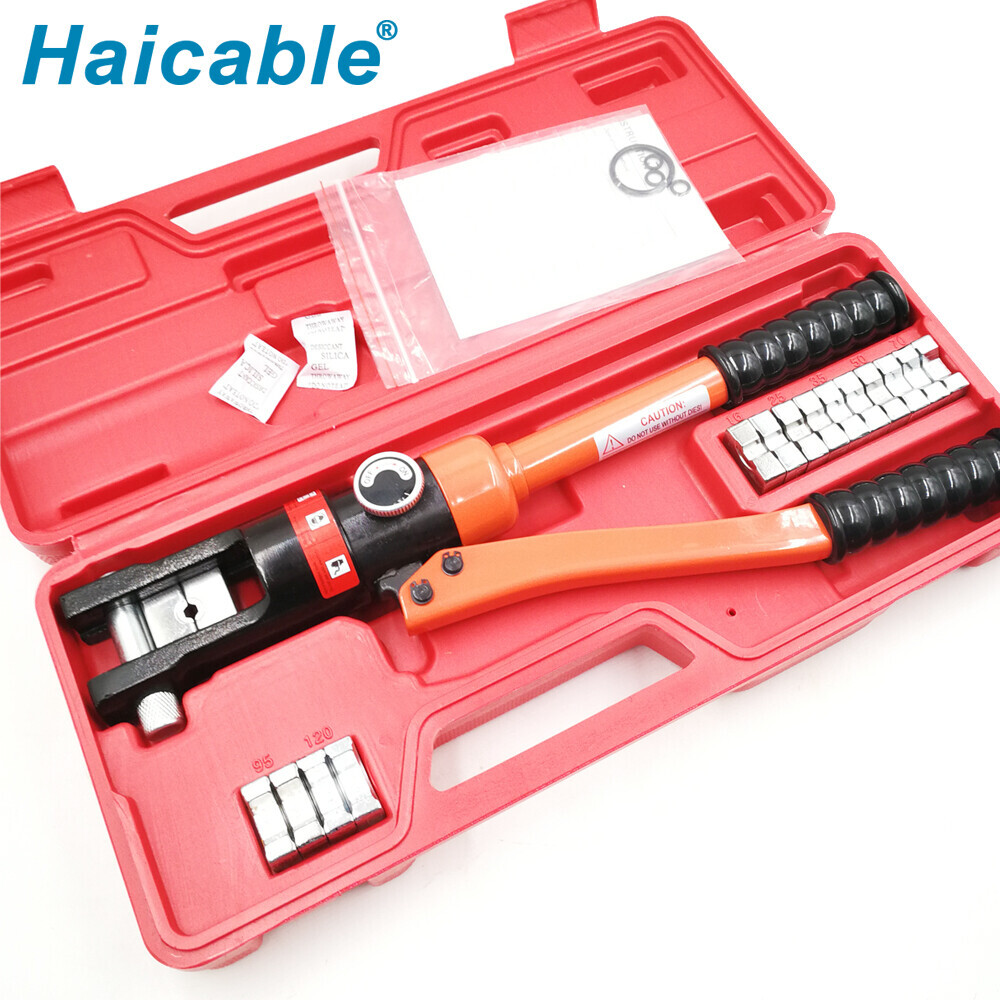

• Package is for carrying plastic case.
• Output: 8T
• Capacity: 10-120mm²
• Ram stroke: 14 mm
• Size: 415*126*65mm
• Weight: 3.0 kg

Video

Parameters

ModelYQK-120S
Terminal TypeCable Lug or Connector
Crimping Capacity10 16 25 35 50 70 95 120 mm²
Output8T
Ram Stroke14 mm
Length415 mm
Weight3 kg
